1.Product Introduction

WinTop Roof on System is developed to fit all types of tiles in solar roof mounting projects. Fasteners are uniquely designed to easier and quicker installation with the use of simple tools.

Before the construction, please read our installation instructions carefully. This manual can provide you with different specifications for the construction of battery board.

Our company is fully based on the Australian AS/NZS1170.2 standard in the design of the product structure. When installing on roof, you must obey the local safety standards, and pay attention to the relevant regulations in your area. You can download the latest installation manual at our website www.xmWinTop.com.

The installer is solely responsible for:

• Complyingwithallapplicablelocalornationalbuildingcodes,including any that may supersede this manual;

• Ensuring that WinTop and other products are appropriate for the particular installation and the installation environment;

• Ensure the roofs,rafters,connecting girders and other supporting structures can stably support a photovoltaic module. (These are considered to be roof mounting);

• Using only WinTop parts and installers-supplied parted as specified by WinTop(Substitution of parts may void the warranty);

• Ensurethewoodscrewshaveenoughstrengthandshearforceininstallation;

• Maintain the integrity of the roof water proof system;

• How to recycle: According to the local relative statute;

• How to disassemble: Counter move with installation;

• Ensure that there are no less than two professional workers in panel installation;

• Ensure the installation of relative electrical equipment is performance by professional electrician.

2.Installation Tools

• 6mm Inner hexagon spanner;

• Electrical tool (Solely used to fasten M6 hexagon self-drilling tapping screws and pan head screws with cross recessed);

• 9, 10, 17, 19 mm open spanner (solely used to fasten bolts that help hang solar panels);

• Angle grinder;

• Power line;

• If necessary, prepare small pieces of wood in case interfaces don’t level with each other.

3.Components

4.Installation Guide

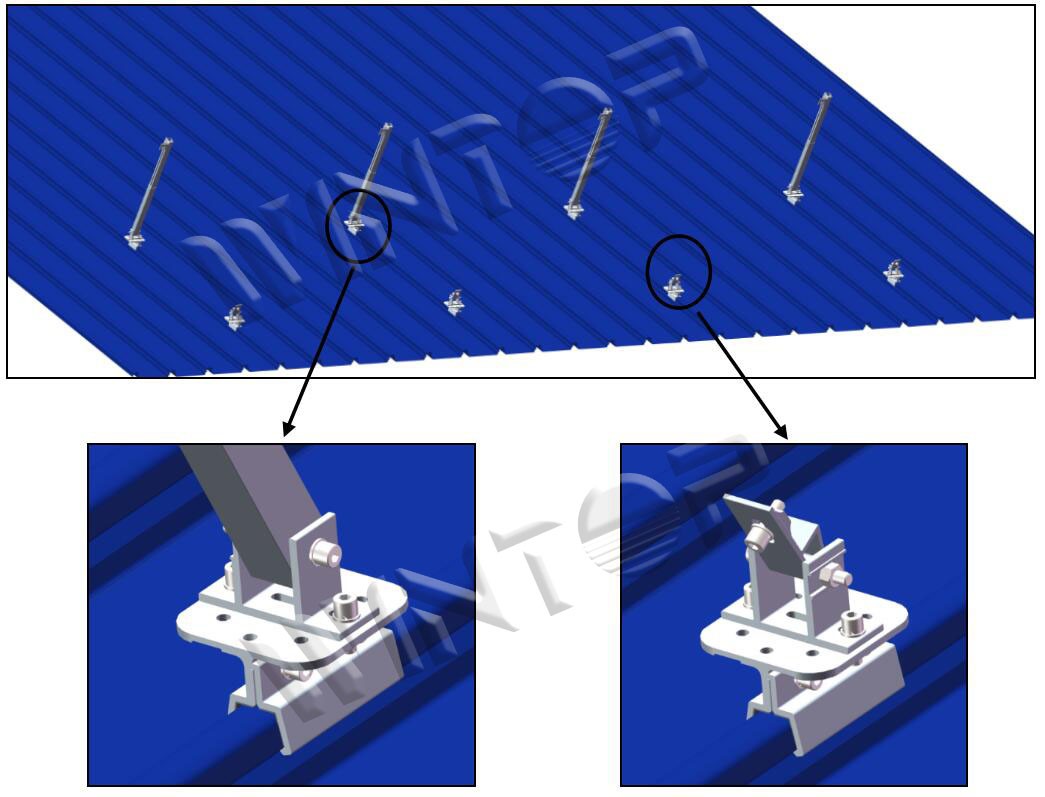

4.1 Install klip-lok hooks on the roof

4.2 Install rear and front leg above Klip-lok hooks

4.3 Install Rail splice

4.4 Place rails

4.5 Place Panels and install all grounding parts

5.Warranty

10 Year Limited Product Warranty, 15 Year After Sales Service

Xiamen WinTop New Energy Tech. Co., Ltd warrants to the original purchaser of products that the Product with Oxidation treatment on surface shall be free from shedding and cracks for a period of 5 years. Additionally, Xiamen WinTop New Energy Tech. Co., Ltd. provides 10 years of quality assurance.

The finish warranty does not apply to any foreigner stored on the finish. All installations in corrosive atmospheric conditions are excluded. The Finish Warranty is VOID if the practices specified by AAMA609&610-02–“Cleaning and Maintenance for Architecturally Finished Aluminum” (www.aamanet.org) are not  by Purchaser. This Warranty does not cover damage to the Product that occurs during its shipment, storage, or installation.

This Warranty shall be VOID if installation of the Product is not performed in accordance with WinTop’s written installation instructions, or if the Product has been modified, repaired, or reworked in a manner not previously authorized by WinTop IN WRITING, or if the Product is installed in an environment for which it was not designed. WinTop shall not be liable for consequential, contingent or incidental damages arising out of the use of the Product by Purchaser under any circumstances.

Manufacturers of related items, such as PV modules and flashings, may provide written warranties of their own.WinTop’s limited Warranty covers only its Product, and not any related items.
