Plug-and-Play Solar Easy Bracket Kit System

Wintop easy solar kit is a plug-and-play system consisting of a solar panel, a micro-inverter, and an angle-adjustable bracket.

Brand:
Wintop
Product Origin:
China
Color:
Nature, or can be customized
Shipping Port:
Xiamen

Product Detail

Plug-and-Play Solar Easy Bracket Kit System

Product Description

This easy solar kit is an all-in-one plug-and-play system, including longi solar panels, Hemai micro-inverters and Wintop's self-produced angle-adjustable brackets. The kit can be used by unpacking and adjusting the angle, no need for professional installers, which can save you labor costs. The product uses a modular design, without additional debugging, fast and convenient. Portable and foldable design, easy to disassemble and carry. The angle of the stand can be adjusted in order to obtain the maximum power generation.

Technical Parameters

Solar PV Panel
Power	410 W
Module efficiency	21%
Current at maximum power	13.12 A
Glass	Single glass, 3.2mm coated tempered glass
Frame	Anodized aluminum alloy frame
Dimension	1722 X 1134 X 30 mm
Weight	20.8 kg

Micro Inverter
Recommended module power	320 to 540+ W
Maximum Input current	12.5 A
Rated output power	400 VA
Rated output current	1.82 /1.74/ 1.67 A
Output voltage/range	220土10 / 180 -275V
Dimensions	182 X 164 X 30 mm
Weight	1.75 kg

AC Extension Cable
Length of Cable	2/3/5/ 10 m optional
Rated Voltage	AC 230 V
Certificate	VDE, CE

General Parameter
Environment protection rating	IP67
Operating ambient temperature range	40 to 60℃
Relative humidity	0-100%

Features & Benefits

Output power up to 500 VA
Adjustable angle to increase power generation
Modular design, no debugging, easy installation
Portable and foldable design for easy transportation
Various scenes, roofs, balconies and gardens
App cloud monitoring, MPPT controller optimizes power generation efficiency

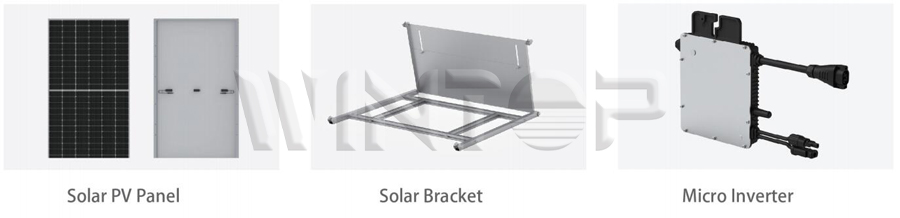

Components

Standard Configuration

Optional configuration

Project

plug-and-play solar system

Certificate

WinTop Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.We have strictly quality control 6S for all our products.

Solar Ground Mount System Quality inspection

FAQ

(1) Are you a manufacturer, trading company or a third party?

We are a manufacturer, and we have built up our company since 2016.

(2) Where is your factory located?

Our factory address is : No.585, HongTang Road, TongAn District,Xiamen,City,Fujian,P.R.China.

(3) How can I get to your factory?

When you arrive in the Xiamen International Airport,then we can pick you up there,and next visit our head office and factory.

(4) If i will need to stay in your place for few days, is that possible to book the hotel for me?

It’s always my pleasure, hotel booking service is available.

(5) What is your minimum order quantity, can you send me samples?

Our minimum quantity is 1 set, and Yes it is acceptable to send you samples if you need,then you just need to pay the shipping fee of the samples.If you need,please feel free to send your inquiry to me.
