Angle Adjustable Aluminum Easy Solar Panel Bracket for Garden

Angle Adjustable Aluminum Easy Solar Panel Bracket for Garden

This easy solar panel mount is specially developed to integrate well with solar kits.

  • Brand:

    Wintop
  • Product Origin:

    China
  • Color:

    Nature, or can be customized
  • Shipping Port:

    Xiamen
  • Brand:

    Wintop
  • Product Detail

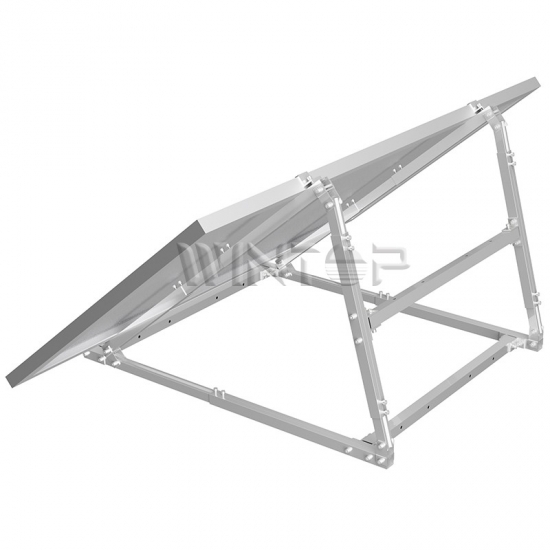

Angle Adjustable Aluminum Easy Solar Panel Bracket for Garden

Product Description


Wintop easy solar bracket, a highly pre-assembled mounting structure for achieving our home energy independence. Simply use it to combined with solar panel and micro inverter, which is designed for multiple scenarios. Tilt angle can be adjusted according to different installation environments and requirements to obtain the maximum power generation.


Technical Parameters

Installation location

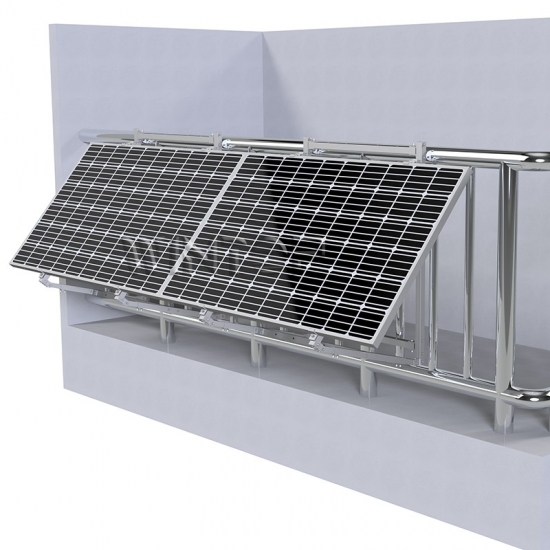

Garden, balcony, railing, walls and etc


Adjustable Angle Range


15°-50°

Material


AL6005-T5, SUS304, EPDM



Gross weight per bracket (kg)



≈8


Applicable module type

Framed


Length of solar module (mm)



≤2200



Width of solar module (mm)



751≤A≤1313mm



Thickness of solar module (mm)



30-50



Module orientation



Landscape


Warranty

10 years


Features & Benefits

  1. Adapt to multiple scenarios: garden, balcony, railing, walls and etc.

  2. Adjustable angle manually to adjust the PV module angle for more energy generation.

  3. Modular design with plug and play connection, quick and easy installation.

Components





Project


Certificate







QC

WinTop Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.We have strictly quality control 6S for all our products.

Solar Ground Mount System Quality inspection


FAQ

(1) Are you a manufacturer, trading company or a third party?

We are a manufacturer, and we have built up our company since 2016.

(2) Where is your factory located?

Our factory address is : No.585, HongTang Road, TongAn District,Xiamen,City,Fujian,P.R.China.

(3) How can I get to your factory?

When you arrive in the Xiamen International Airport,then we can pick you up there,and next visit our head office and factory.

(4) If i will need to stay in your place for few days, is that possible to book the hotel for me?

It’s always my pleasure, hotel booking service is available.

(5) What is your minimum order quantity, can you send me samples?

Our minimum quantity is 1 set, and Yes it is acceptable to send you samples if you need,then you just need to pay the shipping fee of the samples.If you need,please feel free to send your inquiry to me.
