Solar Ground Mounting System Of Concrete Foundation

Solar Ground Mounting System Of Concrete Foundation is widely used in civilian and industrial solar photovoltaic power stations.

  • Installation location

    Ground
  • Installation foundation

    Concrete (long strip or short strip)
  • Installation angle

    Up to request
  • Snow load

    1.4KN/m²
  • Distance from module lowest point to the ground

    Up to request
  • Applicable module type

    Mono-crystalline, Poly-crystalline, Double wave and Thin film
  • Module Orientation

    Horizontal, Vertical
  • Design standard

    AS/NZS1170,JIS C 8955-2017
  • Bracket material

    AL6005-T5(Anodized Oxidation)
  • Fastener Material

    Stainless steel SUS304
  • Brand:

    Wintop
  • Wind load:

    60m/s(216kmh/133mph)
  • Warranty:

    10 years
  • Service Life:

    more than 20 years
  • Product Detail

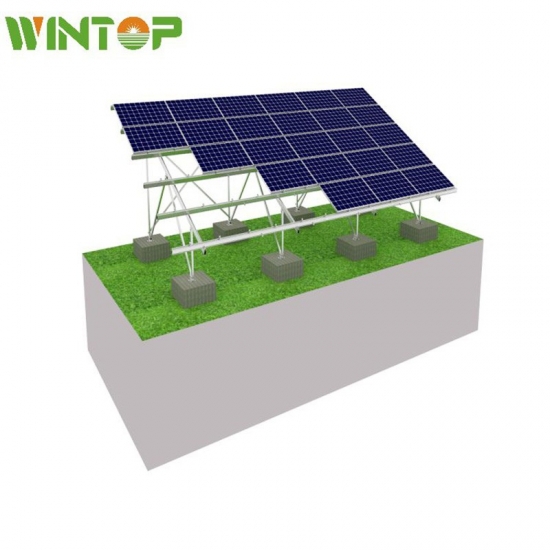

Solar Ground Mounting System Of Concrete Foundation


Product Description

Concrete solar ground mounting system adopts prefabricated or cast-in-place concrete foundation, with mature manufacturing technology, high bearing capacity and easy installation.This concrete photovoltaic bracket is made of lightweight aluminum steel plate, which is more convenient to transport and install.



Technical Parameters

Installation location

Ground

Installation angle

Up to request

Wind load

60m/s (216kmh/133mph)

Snow load

1.4KN/m²

Applicable module type

Mono-crystalline, Poly-crystalline, Double wave and Thin film

Module Orientation

Horizontal, Vertical

Design standard

AS/NZS1170,JIS C 8955-2017

Bracket material

AL6005-T5(Anodized Oxidation)

Fastener Material

Stainless steel SUS304

Warranty&Duration

10 years&More than 20 years


Features & Benefits

  1. Light weight, easy transportation & installation and safe construction;
  2. The surface is treated by oxidation, high corrosion resistance & good stability;
  3. Suitable for various designs and solutions;
  4. The maxiumum pre-assembly, save contruction time and labor cost;
  5. Wide installation, suitable for various soils such as sandy soil and loamy soil;

Components

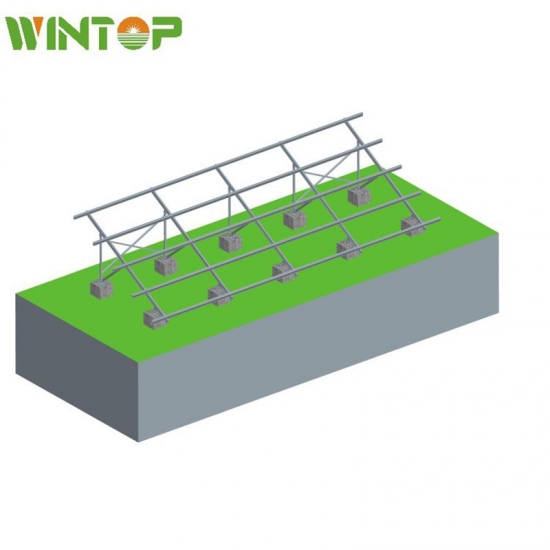

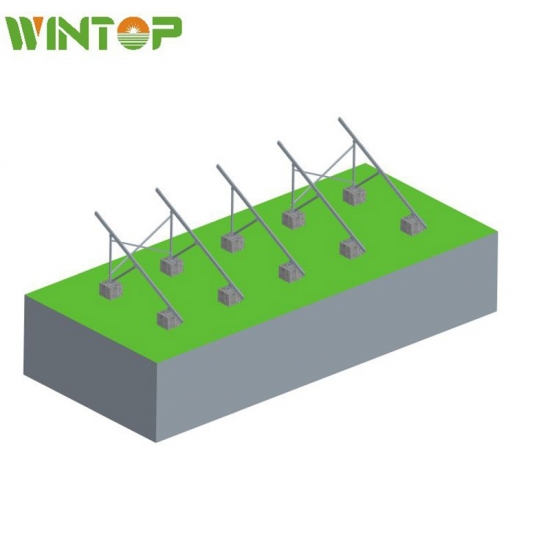

Solar Ground Mount picture

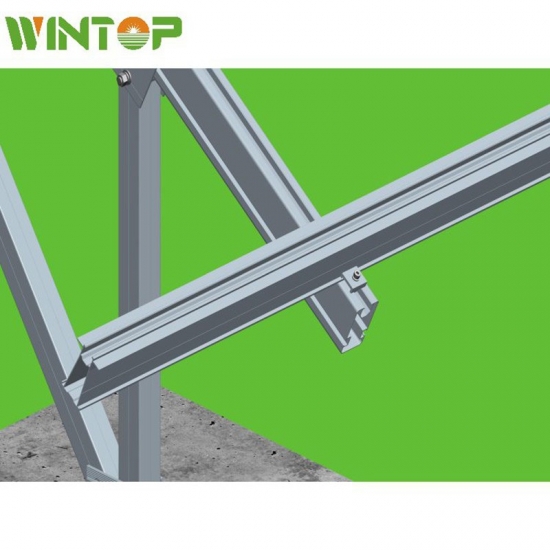

concrete solar mount system component


Project

concrete solar ground mount case

Certificate







Carport mounting QC


WinTop Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.We have strictly quality control 6S for all our products.

Solar Ground Mount System Quality inspection


FAQ


(1) Are you a manufacturer, trading company or a third party?

We are a manufacturer, and we have built up our company since 2016.

(2) Where is your factory located?

Our factory address is : No.585, HongTang Road, TongAn District,Xiamen,City,Fujian,P.R.China.

(3) How can I get to your factory?

When you arrive in the Xiamen International Airport,then we can pick you up there,and next visit our head office and factory.

(4) If i will need to stay in your place for few days, is that possible to book the hotel for me?

It’s always my pleasure, hotel booking service is available.

(5) What is your minimum order quantity, can you send me samples?

Our minimum quantity is 1 set, and Yes it is acceptable to send you samples if you need,then you just need to pay the shipping fee of the samples.If you need,please feel free to send your inquiry to me.
