Thin-film solar panel end clips are suitable for various specifications of thin-film solar panels or frameless solar panels.
Product Origin:
ChinaColor:
Nature, or can be customizedBrand:
WintopModel:

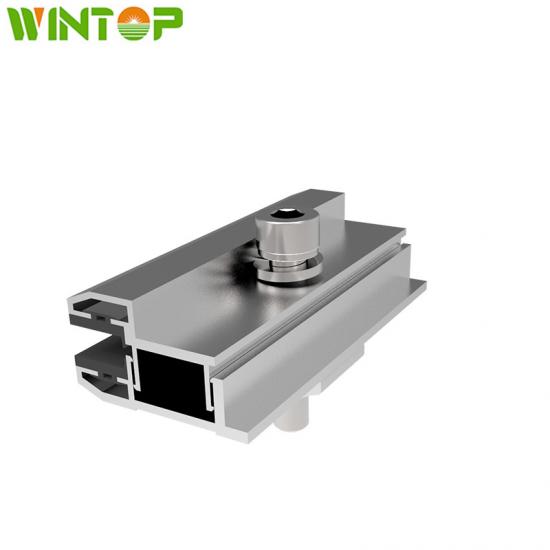

CE-0015Solar Mounting Component Thin-film End Clamp
The thin film end clamps are designed for laminating solar film panels. Used to secure the sides of solar panels, the thin film end clamps contain rubber pads to make the film panels less prone to breakage. Wintop solar film end clamps can customize the length of the film end clamps.
The material and quantity of its components are as follows
| Name |
Upper film end clamp |
Lower film end clamp |
Card block |
Hexagon socket head bolt |
Rubber mat |
spring washer |
| Size | 80mm | 80mm | 30mm | M8x45 | L80xW15.1xT6.5 |
M8 |
| Quantity | 1 | 1 | 1 | 1 | 4 | 1 |
|
Material |
Aluminium |
Aluminium |
Aluminium |
SUS304/316 | EPDM | SUS304/316 |
