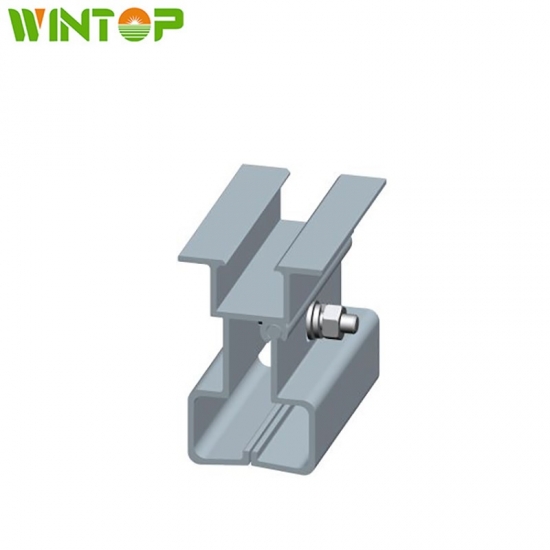

Solar Mounting System Clamps For Metal Roofs

The metal roof clamp can be fixed on almost any type of roof substrate.

  • Product Origin:

    China
  • Color:

    silver, or can be customized
  • Shipping Port:

    Xiamen
  • Installation location

    Roof
  • Installation foundation

    Tin roof
  • Snow load

    1.4KN/m²
  • Bracket material

    AL6005-T5(Anodized Oxidation)
  • Brand:

    Wintop
  • Wind load:

    60m/s(216kmh/133mph)
  • Warranty:

    10 years
  • Service Life:

    more than 20 years
  • Model:

    RF-0002
  • Product Detail

Solar Mounting System Clamps For Metal Roofs

Product Description

The matal roof clamp use clamps to install the panel on the rail or clamps to connect the panel directly. The installation system is usually ballasted or fixed directly on the roof deck using waterproof panels.

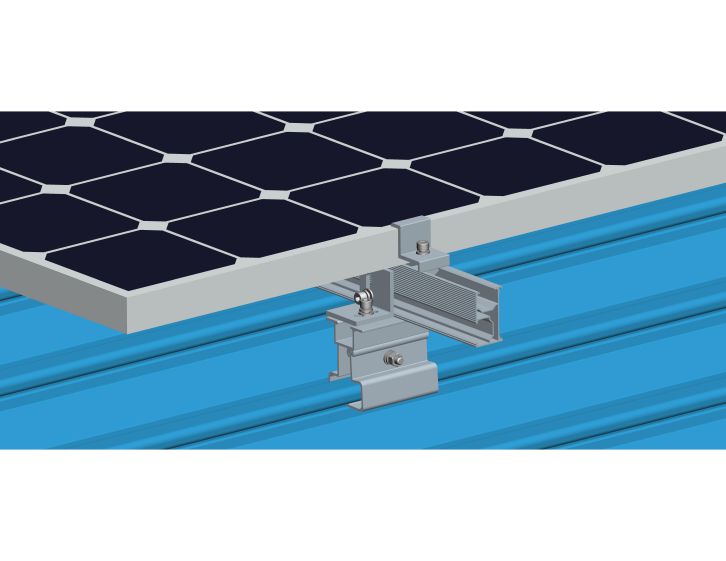

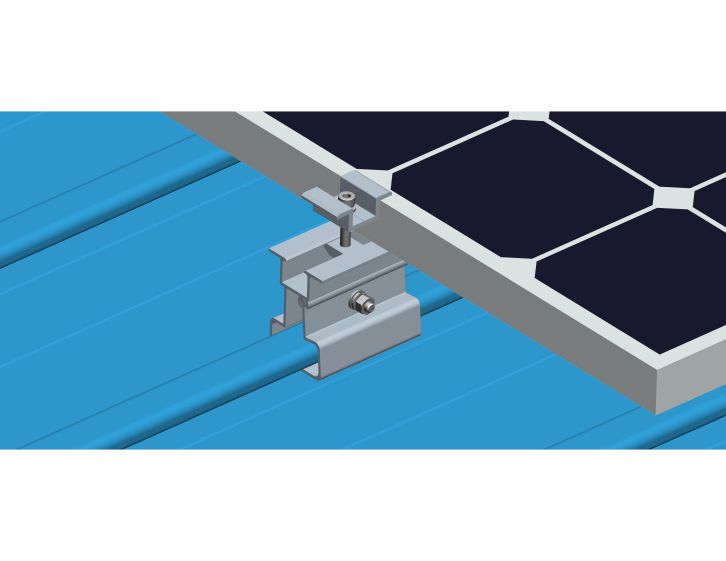

There are two installation methods




RF-0012_CLAMP FOR METAL ROOF
Name

accessories 1

accessories 2

hexagon socket screw spring washer hexagon nut plain washer
Size 100mm
100mm M8*45
M8 M8 M8
Quantity 1 1 2 2 2 4
Qexture Aluminium SUS304 SUS304 SUS304 SUS304 SUS304
