Home Panel cleaning robot Automatic Solar Panel Cleaning Robot

Automatic Solar Panel Cleaning Robot

The solar panel cleaning robot is mainly suitable for cleaning solar panels in various scenarios, such as the ground, roof, water, etc.

  • Order(MOQ):

    1
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Model:

    B30M2
  • Product Detail

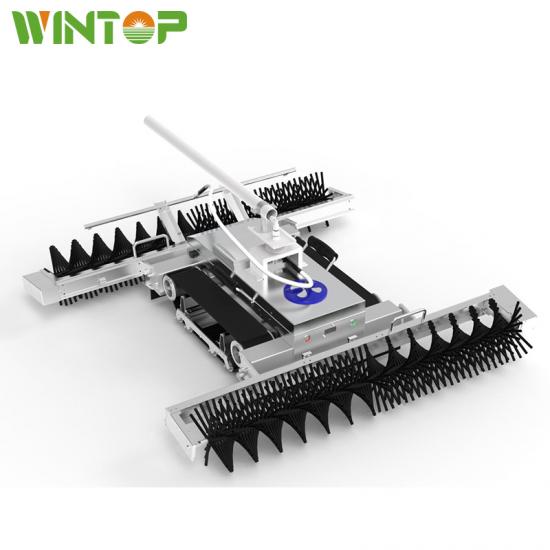

Automatic Solar Panel Cleaning Robot


Product Description

The photovoltaic autonomous cleaning robot does not require personnel monitoring, autonomous perception, planning, decision-making, and perfectly realizes cleaning automation. It has the characteristics of high safety, high applicability, and high durability. Both dry brushing and water washing are available.


Technical Parameters

solar panel washing robot parameters

solar panel washing robot parameters


Features & Benefits

solar panel cleaning robot benefits



Autonomous Planning

solar panel cleaning robot best routine

Auto Plan the Best Routine


 Autonomous Solutions

  • for the Ground Solar

solar panel cleaning robot for ground solar

  • for the Water Solar

solar panel cleaning robot for water solar

  • Industry & Commercial Roof

solar panel cleaning robot for industry roof solar

  • for the House Roof Solar


solar panel cleaning robot for house roof solar




Autonomous Cleaning Solution

solar panel cleaning robot for accross the row



Autonomous Solutions for Across the Row



Smart Operation

solar panel cleaning robot smart operation


Safety

solar panel washing robot safety design

pv module cleaning robot safety design


Recommended Operating Condition

pv panel cleaning robot recommended operating condition

1.Brush Cleaning Solution

2.Water Clean Solution


Project

Solar panel cleaning robot brush dry case

Solar panel cleaning robot water clean case



Dimensions

panel cleaning robot dimensions


Components

panel cleaning robot component

Number Module
1 Kwun
2 Outer covering
3 Battery cover
4 4G network module
5 Self-cleaning pearl cotton
6 Indicators & Buttons
7 Handle
8 Track
9 Shading brush
10 Brush handle
11 Roller brush holder
12 Roller brush connection
13 Roller brush
14 Water cube
15 Water cube mounting holes
16 Water cube pipeline support frame
17 Drop sensor
18 Strap buckle
19 Exposure box
20 Central suction cup



FAQ

(1) In which scenarios can the photovoltaic cleaning robot clean the solar panels?
Photovoltaic cleaning robots can clean solar panels in all scenarios, including but not limited to ground systems, roof systems, water surface systems, etc.


(2) How long is the shelf life and life of the photovoltaic cleaning robot?
Different models of photovoltaic cleaning robots have different shelf life and life. For example, the shelf life of B30M2 is 2 years or 4800 hours, and the life span can reach 6 years.


(3) Does the photovoltaic cleaning robot need real-time monitoring?
The photovoltaic cleaning robot does not need personnel monitoring, autonomous perception, planning, decision-making, and perfect cleaning automation.


(4) Will the maintenance of photovoltaic cleaning robots be troublesome?
No, the modular design of the photovoltaic cleaning robot, the on-site disassembly and assembly time of each maintenance process of the product is controlled within 5 minutes. Significantly reduces maintenance time and staff workload. Accessories are always guaranteed.


(5) How does the photovoltaic cleaning robot work?
The photovoltaic cleaning robot operates autonomously. After the recognition scene is completed, it climbs up to the top of the photovoltaic array and probes the direction. After determining the direction, it starts to work horizontally. It turns around on both sides of the array until it covers the array, and selects the end point according to the parking mode.


(6) What should I do if the power of the photovoltaic cleaning robot is insufficient during the working process?
When the battery power is insufficient during the autonomous operation of the photovoltaic cleaning robot, the device will enter the low-voltage return-to-home mode and return to the starting position.
