Rooftop Cleaning Robot for Solar Panels Supplier

Dry brushing and water washing modes, 7/24 hours working

Order(MOQ):
1
Product Origin:
China
Color:
Nature, or can be customized
Shipping Port:
Xiamen
Model:
C10L

Product Detail

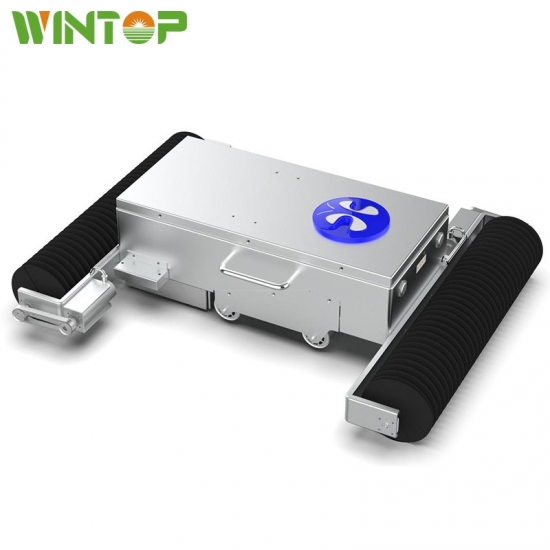

Rooftop Cleaning Robot for Solar Panels Supplier

Product Description

The cleaning robot for photovoltaic module does not require personnel monitoring, autonomous perception, planning, decision-making, and perfectly realizes cleaning automation. It has the characteristics of high safety, high applicability, and high durability. Both dry brushing and water washing are available.

Technical Parameters

Shape	Body Size	520250140mm
	Brush Size	630170120mm
	Brush Quantity	2
	Body Weight	13Kg
	Brush Weight	-
Clean Capacity	Dust (Adhesion ≤10-6N)	≥99%
	Dust Accumulation (adhesion ≤10-4N)	≥95%
	Dried Guano (Adhesion ≤10-2N)	≥85%
	Cleaning Efficiency (SQM/H)	200
Lifespan	Design life (years)	3
Lifespan	Warranty	1 years or 2400 hours
Battery	Battery capacity	15Ah
	Working Time	6 hours
	Charging time	3 hours
	8 hour battery life	Replace Once
Technology	Based on TianyunOS operating system
	Based on Glass vSLAM visual navigation technology
	Based on Goodzenn path planning technology
	Based on AI-KWUN operating platform
	Based on OTA-KWUN operating platform
Security	Working Mode	Independent Autonomous
	Robot Management	APP
	Positioning	AI + Semantic Vision
	Positioning Accuracy	MM
	Steering mode	High Precision Adsorption Steering mechanism
	Anti-Fall protection	AI Semantic Vision + Ultrasonic
	Anti-Slip	High Precision Deviation Correction Algorithm
	Panel Surface Pressure	≤2100Pa
	Water and Dust Grade	IP65
Operation	Max Robot NO. Controlled	24
	Recommended Max Robots Controlled On Slope	4
	Recommended Max Robots Controlled On Roof	4
	Software maintenance and upgrade	OTA
	Day & Night Work 7/24	Yes
	Real time logs	Yes
	Can retract by drone	Yes
	Unmanned operation	Yes
	Control Remotely	Yes
	Across the Gap and Height	Yes
	Brush speed adjustable	Yes
	Brush Detachable	Yes

Features & Benefits

Autonomous Planning

Auto Plan the Best Routine

Autonomous Solutions

for the Ground Solar

solar panel cleaning robot for ground solar

for the Water Solar

solar panel cleaning robot for water solar

Industry & Commercial Roof

solar panel cleaning robot for industry roof solar

for the House Roof Solar

solar panel cleaning robot for house roof solar

Autonomous Cleaning Solution

solar panel cleaning robot for accross the row

Autonomous Solutions for Across the Row

Smart Operation

Safety

solar panel washing robot safety design

pv module cleaning robot safety design

Recommended Operating Condition

Brush Cleaning	PV Angle	0~20°
	PV Surface Temperature	20~80℃
	The Environment Temperature	10~50℃
	Across PV Panel Gap	40mm
	Across PV Panel Height Difference	30mm
	Rainfall Proof	Refer to Water Cleaning
	Wind Proof	62-74 Km/H Wind
Water Cleaning	PV Angle	0~15°
	PV Surface Temperature	20~35℃
	The Environment Temperature	10~35℃
	Across PV Panel Gap	40mm
	Across PV Panel Height Difference	25mm
	Rainfall Proof	25~50mm Heavy Rain
	Wind Proof	29~38Km/H Wind

Project

C10L Solar panel cleaning robot case

Components

Number	Module
1	Kwun body
2	Battery
3	4G Network module
4	Indicator light & Button
5	Handle
6	Crawler belt
7	Shading brush
8	Roller
9	Ultrasonic sensor
10	Exposure box
11	Central suction cup
12	Self cleaning stuff
13	Water cube
14	Water cube-mounting

FAQ

(1) In which scenarios can the photovoltaic cleaning robot clean the solar panels?
Photovoltaic cleaning robots can clean solar panels in all scenarios, including but not limited to ground systems, roof systems, water surface systems, etc.

(2) How long is the shelf life and life of the photovoltaic cleaning robot?
Different models of photovoltaic cleaning robots have different shelf life and life. For example, the shelf life of B30M2 is 2 years or 4800 hours, and the life span can reach 6 years.

(3) Does the photovoltaic cleaning robot need real-time monitoring?
The photovoltaic cleaning robot does not need personnel monitoring, autonomous perception, planning, decision-making, and perfect cleaning automation.

(4) Will the maintenance of photovoltaic cleaning robots be troublesome?
No, the modular design of the photovoltaic cleaning robot, the on-site disassembly and assembly time of each maintenance process of the product is controlled within 5 minutes. Significantly reduces maintenance time and staff workload. Accessories are always guaranteed.

(5) How does the photovoltaic cleaning robot work?
The photovoltaic cleaning robot operates autonomously. After the recognition scene is completed, it climbs up to the top of the photovoltaic array and probes the direction. After determining the direction, it starts to work horizontally. It turns around on both sides of the array until it covers the array, and selects the end point according to the parking mode.

(6) What should I do if the power of the photovoltaic cleaning robot is insufficient during the working process?
When the battery power is insufficient during the autonomous operation of the photovoltaic cleaning robot, the device will enter the low-voltage return-to-home mode and return to the starting position.
