Home Roof Mounting System Tile Roof System Solar Pitched Tile Roof Mounting System

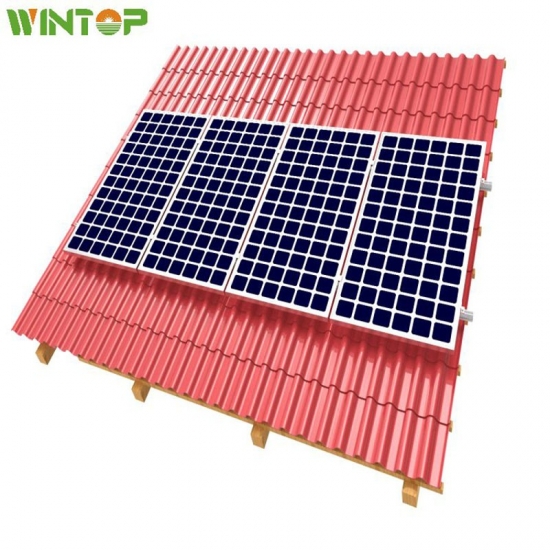

Solar Pitched Tile Roof Mounting System

Solar pitched tile roof mounting system needed by mostly pitched roof mounting system.It is suitable for mounting frame and frameless module flushing to pitched roof.

  • Product Origin:

    China
  • Installation location

    Pitched tile roof
  • Installation angle

    0°-60°
  • Snow load

    1.4KN/m²
  • Distance from module lowest point to the ground

    Roof height
  • Applicable module type

    Mono-Crystalline, Poly-Crystalline, Double Wave And Thin Film
  • Module Orientation

    Horizontal, Vertical
  • Design standard

    AS/NZS1170,JIS C 8955-2017
  • Bracket material

    AL6005-T5(Anodized Oxidation)
  • Fastener Material

    Stainless steel SUS304
  • Brand:

    Wintop
  • Wind load:

    60m/s(216kmh/133mph)
  • Warranty:

    10 years
  • Service Life:

    more than 20 years
  • Product Detail

Solar Pitched Tile Roof Mounting System


Product Description

Tile roof solar mounting system offers perfection solution for installation on tile roofing, the roof fastening is done using highly-resistant stainless steel roof hooks,which is suitable for nearly all coverings, this include pantile,plain tiles,slate tiles.System are fully compliant with the Australia and other international standards on wind&snow load,making it suitable for a wide variety of climatic zones.


Technical Parameters

Installation location Pitched tile roof
Installation foundation Magnetic tile, flat tile, slate tile, asphalt tile
Installation angle 0°-6
Wind load 60m/s(216kmh/133mph)
Snow load 1.4KN/m²
Distance from module lowest point to the ground Roof height
Applicable module type Mono-crystalline, Poly-crystalline, Double wave and Thin film
Module Orientation Horizontal, Vertical
Design standard AS/NZS1170,JIS C 8955-2017
Bracket material AL6005-T5(Anodized Oxidation)
Fastener Material Stainless steel SUS304
Warranty&Duration 10 years&More than 20 years


Features & Benefits

  1. Suitable for variety of pitched tile roof;
  2. pre-assembled in the factory to save your installation time;
  3. Wide range of roof hook for actual use;
  4. Available to variety of PV modules.
  5. Modules can be placed in rails from any position;
  6. Rails and accessories can be mounted with the strongest panels on different conditions.


Components

tile roof mounting picture

tile roof mounting component


Project

tile roof mounting case


Certificate







QC

WinTop Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.We have strictly quality control 6S for all our products.


FAQ

(1) Will the solar panels cause my roof to leak?

No, all of our mounting solutions are professionally engineered, guaranteed to ensure the integrity of your roof.To prevent water intrusion on shingled roofs, we use metal flashing kits that create a watertight seal every time.

(2) Where is your factory located?

Our factory address is : No.585, HongTang Road, TongAn District,Xiamen,City,Fujian,P.R.China.

(3) How can I get to your factory?

When you arrive in the Xiamen International Airport,then we can pick you up there,and next visit our head office and factory.

(4) If i will need to stay in your place for few days, is that possible to book the hotel for me?

It’s always my pleasure, hotel booking service is available.

(5) What is your minimum order quantity, can you send me samples?

Our minimum quantity is 1 set, and Yes it is acceptable to send you samples if you need,then you just need to pay the shipping fee of the samples.If you need,please feel free to send your inquiry to me.
