Solar PV Mounting Roof Aluminum Rail Splice

Solar mounting rail splice is used to connect solar mounting rails.

  • Product Origin:

    China
  • Color:

    silver, or can be customized
  • Shipping Port:

    Xiamen
  • Installation location

    Roof
  • Snow load

    1.4KN/m²
  • Bracket material

    AL6005-T5(Anodized Oxidation)
  • Fastener Material

    Stainless steel SUS304
  • Brand:

    Wintop
  • Wind load:

    60m/s(216kmh/133mph)
  • Warranty:

    10 years
  • Service Life:

    more than 20 years
  • Model:

    SR-0003
  • Product Detail

Solar PV Mounting Roof Aluminum Rail Splice

Solar mounting rail splice is suitable for the connection between two rails to make the rails longer.This rail splice is mainly used for roof mounting rails.


Advantage as follows:



  • Flexible and easy component installation, saving labor cost and installation time;
  • Can provide a variety of rail splice for different rails;
  • High durability.



Product Name
Solar PV Mounting Roof Aluminum Rail Splice
Model
SR-0003
Specification
200 mm
Material
AL6005-T5/Stainless steel SUS304
Color Nature or Customized
Surface Treatment Anodized Oxidation
Application
Solar System

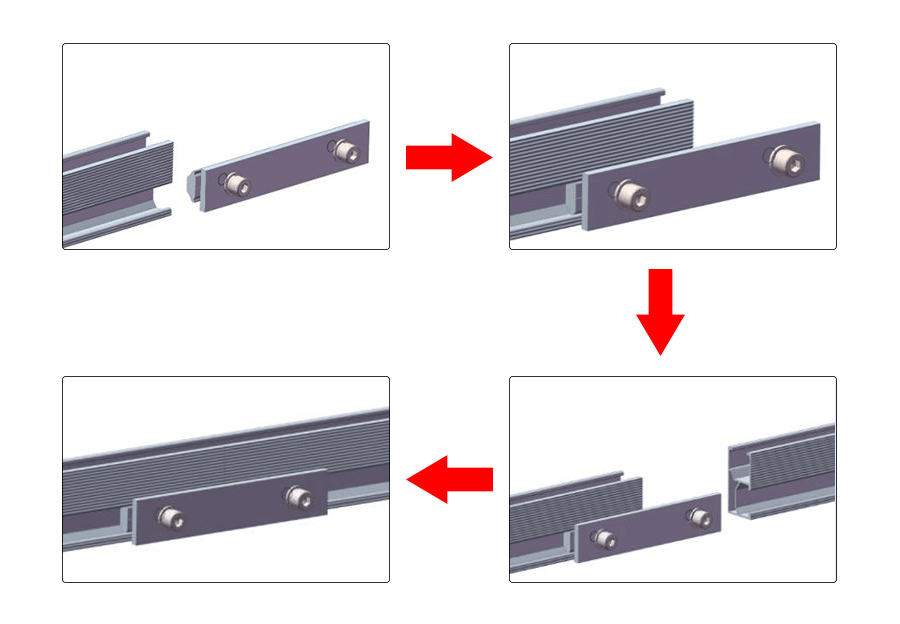

rail splice install step
