The solar component roof clamp is suitable for the klip-lok700 roof sheet.
Product Origin:
中国Color:
銀色Shipping Port:
厦門港Lead Time:
1週間Brand:
WintopModel:

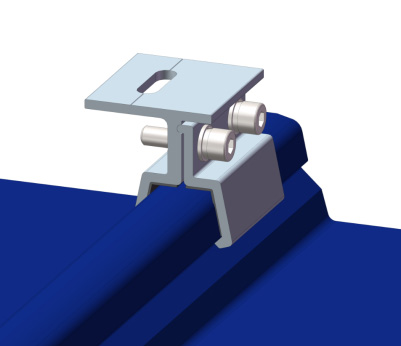

RF-0038Solar Racking Component Tin Roof Clamp
This roof clip is suitable for tin roofs, can be used with L feet, or can be directly installed with middle and end clamps.
Its installation and assembly diagram is as follows:
The material and quantity of its components are as follows
| Name |
Roof clamp accessories 1 |
Roof clamp accessories2 |
flat washer |
Rubber mat |
Hexagon socket head bolt |
spring washer |
| Size | 60mm | 60mm | M8 |
L60xW30xT1 |
M8x25 |
M8 |
| Quantity | 1 | 1 | 2 | 2 | 2 | 2 |
|
Material |
Aluminium |
Aluminium |
SUS304/316 |
EPDM | SUS304/316 | SUS304/316 |
